SRRC model approval

1) SRRC is a mandatory certification requirement of the State Radio Regulatory Commission. Since June 1, 1999, the Ministry of Information Industry (MII) of China has mandated that all radio components sold and used in China must obtain the required certification. Radio Type ApprovalCertification.

2) In order to ensure that the frequencies of different types of radio transmission equipment can be legally used in China, all radio transmission equipment sold in China must apply for radio type approval certification (SRRC), and also need to apply for the implementation of product certification system (CCC) and Internet Access License (MII).

1) State Radio Regulatory Commission, referred to as SRRC; official website www.srrc.org.cn;

2) All radio transmission equipment exported to my country or produced in China must be certified by SRRC, indicating the type approval code of the wireless transmission equipment;

3) Each type of radio transmission equipment is issued with a unique "Radio Transmission Equipment Type Approval Certificate" and an approval code. If the product has changes in performance or main technical parameters, it must be re-certified by SRRC.

(1) Radio communication, navigation, positioning, direction finding, radar, remote control, telemetry, radio, television and other equipment that emit radio waves (excluding industrial, scientific research, medical

equipment, electrified transportation systems, high-voltage power lines and other electrical installations, etc.);

(2) Equipment type:

Fixed communication equipment, public network mobile communication equipment, short-range (low power) transmission equipment, dedicated mobile communication equipment, broadcast transmission equipment, aviation communication, navigation equipment, radar equipment, water communication, navigation equipment, satellite communication equipment.

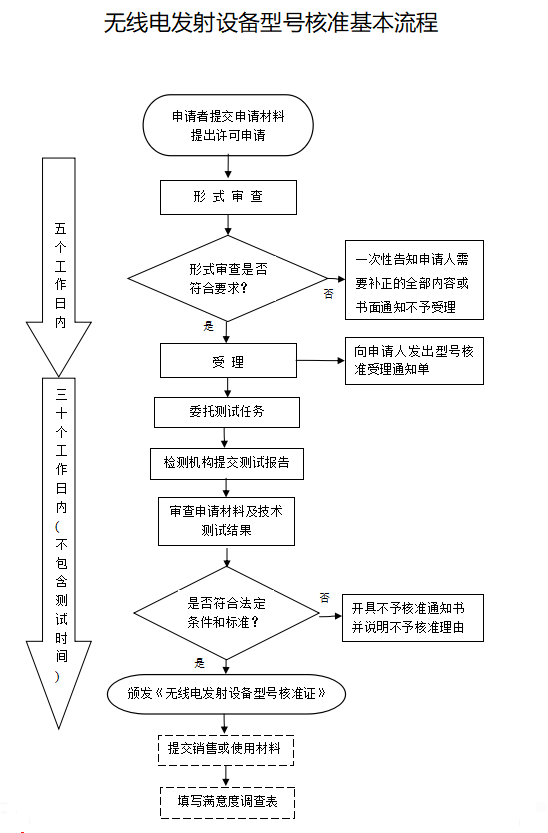

1. SRRC certification process;

2. SRRC certification cycle

SRRC certification cycle: 40-60 working days (excluding rectification time).

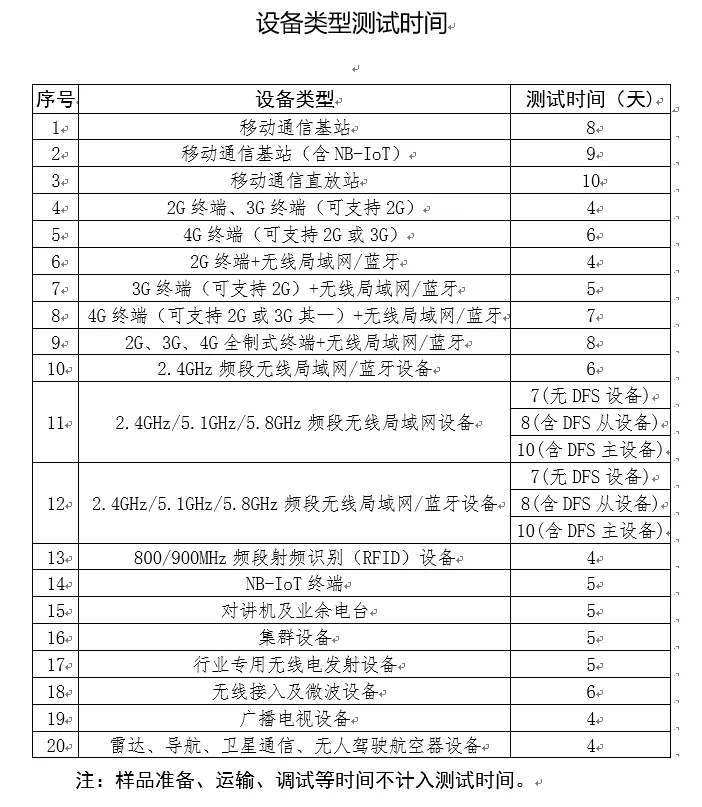

The following is the official announcement of the SRRC test time (Note: The modified time is the test time after the commission has debugged all samples, excluding the application, debugging and certification time)

1) Application form;

2) Power of Attorney;

3) Letter of commitment;

3) Business license (annual inspection cannot expire);

4) The prototype and quantity depend on different products, and some prototypes need to lead out the RF line (and the RF port or SMA port);

5) ISO certificate or company profile and company capability description;

6) Product specifications, circuit diagrams, manuals, block diagrams, and operating instructions;

7) Antenna gain;

8) Test guidance;

9) Color photo and nameplate of EUT (must include all interfaces and sides);

10) Frequency and channel comparison table (if there are multiple working channels to be provided);

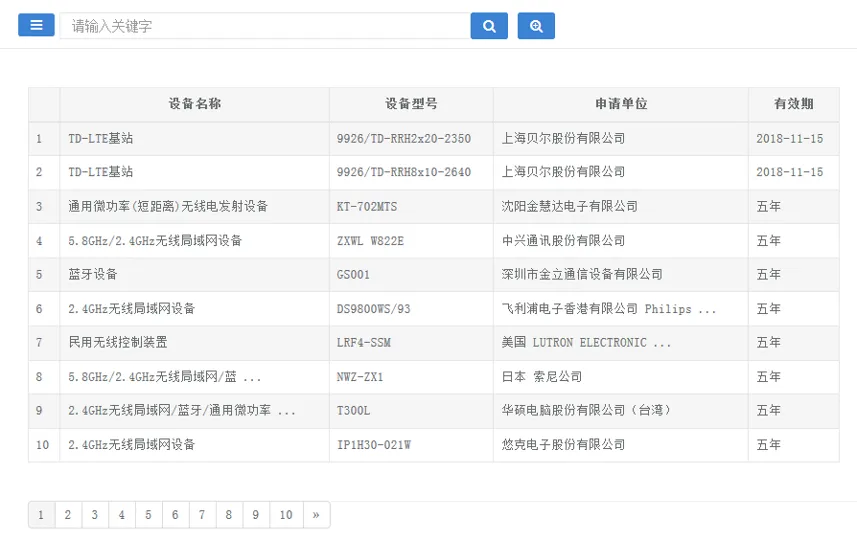

The available information is as follows:

The above is the relevant knowledge about SRRC model approval and certification shared by Lanya Xiaobian Orange. I believe that everyone has a basic understanding of this. Regarding professional issues,

If you have any questions, you can contact the professionals below to answer them, hoping to help everyone.
